Spring Boot on EC2

This article is about installing a Spring Boot Application on AWS using this technology stack:

  • EC2 to run the Java program

  • systemctl to control start/stop/restart the application

  • Configuration of the Spring Boot application using environment variables


We start from the assumption that a jar file has been created and is available on AWS S3 or some other artifact repository.

Step 1: Create the EC2 Instance


Prerequisites:

  • AWS account

  • 1 VPC - dev-vpc

  • 1 subnet -  dev-apps-subnet


I created an EC2 instance of size small with an Amazon Linux image.

In that instance, I created a folder for the application and copied the jar file genova-1.0.jar containing the Spring Boot application to that folder.

Step 2: Configure the Process to Run the Java Application


SystemD is a Linux facility that automatically starts, restarts, and stops processes.

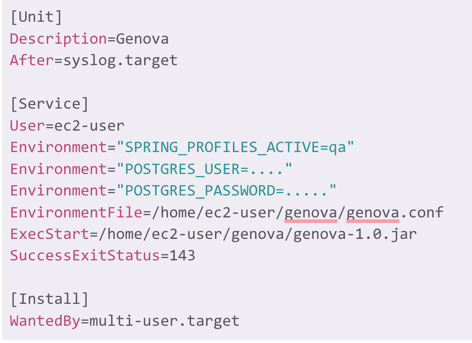

In this case, it consists of a file in /etc/systemd/system:



Also, it is possible to configure other environment variables in the file genova.conf:


JAVA_HOME=/usr/lib/jvm/java-11-openjdk-11.0.13.0.8-1.amzn2.0.3.x86_64
JAVA_OPTS="-Xms256m -Xmx256m"


Because we want to use the same approach on multiple deployments (EC2, Docker, Elastic Beanstalk), we will remove the configuration from the .conf file and move it all to the .service file. It is shown in this article as an option.


Commands used:


  • sudo systemctl daemon-reload - reload the configuration

  • sudo systemctl start  genova.service - start the service

  • sudo journalctl -u genova.service - list recent log entries

Step 3: API Gateway Configuration

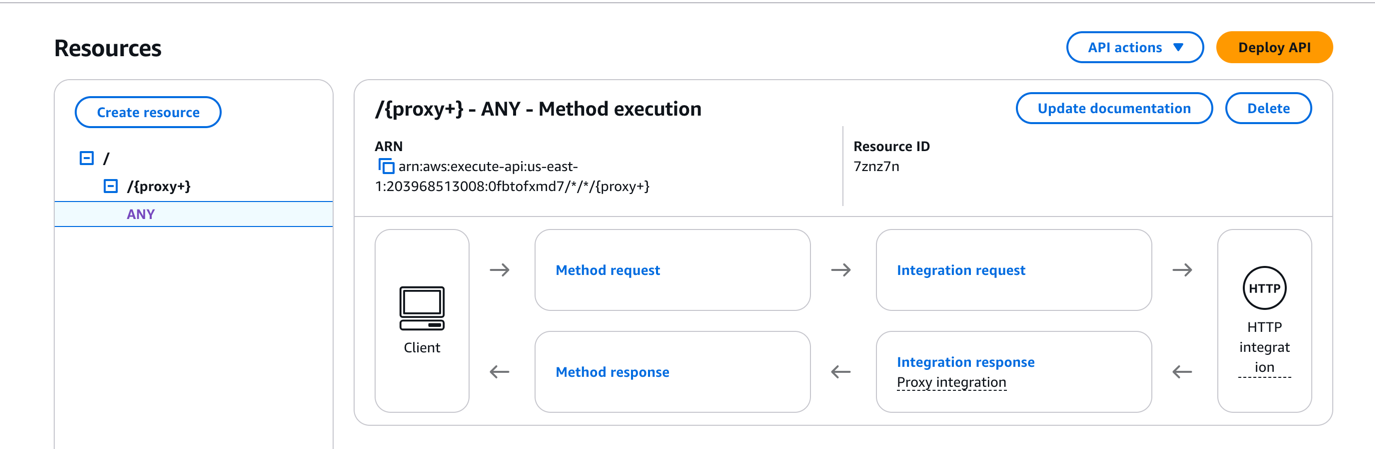

The EC2 instance is in a private subnet for security purposes and is inaccessible directly over the public Internet. To provide access to the application, we used the AWS API Gateway, which acts in this case like a load balancer:
